Promotor NES-32 Nucleic Acid Extraction System

MDx Technology – Make Life Precise

NES-32 Nucleic Acid Extraction System
Product is Available for International Distribution Only – Not Available in the US

The semi-automatic NES-32 nucleic acid extraction system is efficient, easy to operate and offers a throughput of 32 samples per run. Using magnetic bead technology, the NES-32 can process a variety of specimens, including tissue, blood and other bodily fluids.

Promotor NES-32 Nucleic Acid Extraction System

Three extraction kits available

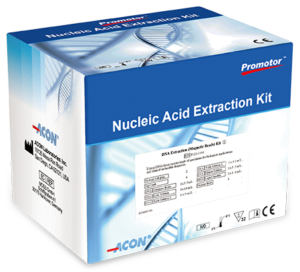

DNA Extraction Kit

RNA Extraction Kit

Whole Blood Extraction Kit

Promotor NES-32 Nucleic Acid Extraction System

Product Features

High Efficiency



  • 32 samples per run
  • Extracted end product available within 40 min.
  • Ready-to-use extraction plate provided

Accuracy

    • High purity and low CVs
    • High recovery rate

    User Friendly



    • Solid and reliable performance
    • UV sterilization
    • Remote access via Ethernet
    • Easy to maintain

    Promotor NES-32 Nucleic Acid Extraction System

    Principle

    Nucleic acid lysed from cells or viruses is collected by magnetic beads, which are then transferred by magnetic rods from well to well. Purified nucleic acid is obtained after the washing and elution steps. Disposable comb tips are employed throughout the process to protect the magnetic rods from contamination.

    Promotor NES-32 Nucleic Acid Extraction System

    Quick Operation Guide

    Promotor NES-32 Nucleic Acid Extraction System

    Product Specifications

    Feature Specification
    Processing Volume 20-1000μl
    Throughput 1-32
    CV ≤1.5%
    Recovery Rate ≥98%
    Lysis Heating Temperature Lysis Temp (from RT to 120℃)
    Elution Heating Temperature Elution Temp (from RT to 120℃)
    Sterilization UV lamp
    Dimensions 437×512×470 mm (W×D×H)
    Processing Time 12-40 minutes
    Sensitivity of 100 copies/mL ≥98%
    Connectivity Port USB/LAN
    Power Source AC 85-264V. 50Hz/60Hz, 600VA
